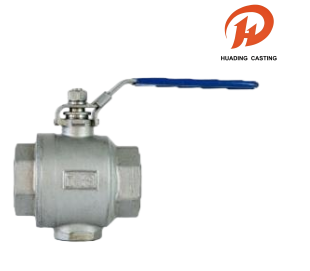

Iivalvu zeBhola zoQhagamshelwano lweMisonto eMibini ngaPhakathi

Ezi ziValufa zeBhola zoQhagamshelwano lweMisonto eZimbini zaNgaphakathi zibonisa umzimba wotyalo-mali olomeleleyo kunye nesiqu sobungqina obuvuthelayo, oqinisekisa ukhuseleko kunye nokuqina. Eyenzelwe ukuguquguquka, iivalve zihambelana nemigangatho emininzi yentambo (NPT, BSPT, DIN 2999, ISO 228) kwaye ixhasa i-ISO 5211 ukufakwa ngokuthe ngqo kwee-activators. Ngoxinzelelo olusebenzayo lwe-1000 PSI kunye nokuthotyelwa kwemigangatho yovavanyo engqongqo efana ne-API 598, ezi Zimbini ze-Inner Thread Connection Ball Valves zakhiwe kwizicelo eziphezulu zokusebenza.

Thumela uMbuzo

Ingcaciso yeMveliso

Igama:Iziqendu eziMbini zoQhagamshelo lweBhola iiValuvu zeBhola yaNgaphakathi

Umbandela: Itheyibhile elandelayo

MOQ: 100 iipcs

Ipakethe: Ukupakishwa kwangaphakathi kwebhegi yeqamza ejiyileyo kunye nokupakishwa kwangaphandle kwebhokisi, Okanye ukuthuthwa kwepalethi efanelekileyo elwandle

Ukuthunyelwa kwempahla: DHL, UPS, FedEx, LCL ngolwandle njl.

Ukunyamezela: Ukuchaneka komatshini weCNC, ukunyamezela ± 0.01mm

Ukuhlolwa: Ukuhlolwa okupheleleyo kweCMM yaseJamani, isiphene se-zero

I-OEM & ODM: I-OEM & ODM yamkelwe, ukwenza isampulu ngokukhawuleza

Ixesha: Ukulawulwa komgangatho ongqongqo, ukuhanjiswa ngexesha

Inkonzo:Ukhetho olubanzi lwemathiriyeli yezahlulo zesiko

Iivalvu zeBhola zoQhagamshelwano lweMisonto eMibini ngaPhakathi

Ezi ziValufa zeBhola zoQhagamshelwano lweMisonto eZimbini zaNgaphakathi zithobela imigangatho yentambo yombhobho equka i-NPT, i-BSPT, i-DIN 2999, kunye ne-ISO 228, kwaye ibonisa i-ISO 5211 yoyilo oluthe ngqo lwe-actuator kunye nesixhobo sokutshixa. Ilinganiswe ngoxinzelelo olusebenzayo lwe-1000 PSI (PN63) W.O.G, i-Two-Piece Inner Thread Connection Ball Valves ivavanywa ngokungqongqo ngokwe-API 598, GB / T 13927, kunye nemigangatho ye-ISO 5208 ukuqinisekisa ukusebenza okuthembekileyo kwizicelo ezifunayo.

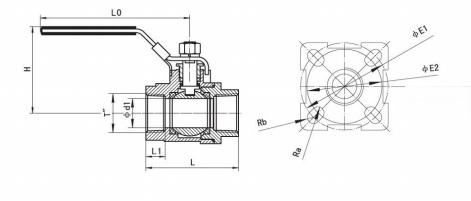

Iivalvu zeBhola Abalinganiswa boBugcisa kunye noMzobo oQhelekileyo

INJONGO	PIPE	DIMENSION
I-DIA. (mm)	UMCHUKU	d1	L	L1	H	L0	Ra	Rb	E1	E2
8	1/4	9.2	46.8	10	47.8	80	I-R3	I-R3	Φ42	Φ36
10	3/8	12.5	52	12	52	80	I-R3	I-R3	Φ42	Φ36
15	1/2	15	59	13.5	56.5	100	I-R3	I-R3	Φ42	Φ36
20	3/4	20	65	14.5	58.5	100	I-R3	I-R3	Φ42	Φ36
25	1	25	76	16.5	74	148	I-R3	I-R3.5	Φ50	Φ42
32	1 1/4	32	90	19	79	148	I-R3	I-R3.5	Φ50	Φ42
40	1 1/2	38	101.5	19	92	190	I-R3.5	I-R4.5	Φ70	Φ50
50	2	50	120.5	22	103	190	I-R3.5	I-R4.5	Φ70	Φ50
65	2 1/2	65	157	28	118	280	I-R4.5	I-R5.5	Φ102	Φ70
80	3	80	176	32	118	280	I-R4.5	I-R5.5	Φ102	Φ70
100	4	100	212	32	144	280	I-R5.75	I-R6.75	Φ125	Φ102

Uluhlu lwezinto ezibonakalayo zeValve yebhola

ICANDELO IGAMA	IZINTO
UMZIMBA	WCB CF8 CF8M
ICAP	WCB CF8 CF8M
IBHOLA	SS304 SS304 SS316
ISIHLALO	PTFE
STEM	SS304 SS304 SS316
GLAND	SS304
UKUPAKISHA	PTFE
IGASKET	PTFE
IWASHA	PTFE
I-NUT	SS304
UMHLAZI ENTSHAZAKO	SS304
ILOKHA	SS304
PHATHA	SS304
IKHAYA	IPLASTIKI
