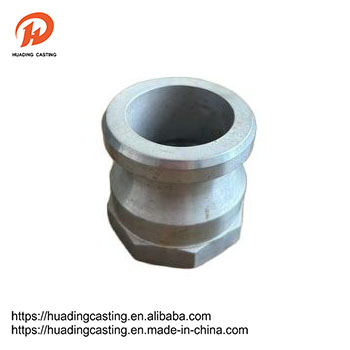

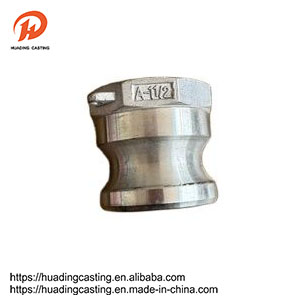

I-Stainess yensimbi ye-callock coupling

I-A-A-59326 (Mil-C-27487) okanye i-DIN2822 eyaziwa ngokuba yi-cadaptha yendoda kunye nebhinqa. I-Camlock Coupling kulula ukuyifaka. Ngexesha lenkqubo yokufakwa, akukho zixhobo ziyafuneka kwaye uxinzelelo lwezandla lwanele. I-callock yentsimbi engenanto ilungele ukuthutha i-acidic, ialkaline, izinto zoncedo, amanzi amdaka, ioyile ye-hydraulic, njl.

Thumela uMbuzo

Ukukala: 5.0

(Ubalo lokukala: 1)

Ingcaciso yeMveliso

Ukusetyenziswa kunye nokuNxibelelana kwe-Cam kunye ne-Couples Couples: Chwetheza inkampu ingasetyenziswa ngohlobo lwe-D, c uhlobo, uhlobo lwe-DC. .

Iimpawu eziphambili kunye neziBonelelo:

Ukuqina kokuqina kwempahla: ukunqunyulwa kwezinto eziphathwayo: I-Childrals Stoes, i-Alkaline, i-Alkaline, kunye namanzi olwandle, ioyile engcolileyo, ioyile ye-hydraulic, nangaphezulu.

Uqhagamshelo olukhawulezileyo: I-Cam eyodwa ye-cam kunye noyilo lweGroove luvumela ukuba kuqhagamshelo ngokukhawuleza kunye nokungasebenzi kakuhle kunye nokuqhawulwa, ukwandisa ukusebenza kakuhle.

I-CALOLOGILE: Chwetheza i-callock couplings zidibanisa nohlobo lwe-D ngohlobo lwe-D, c lohlobo, kunye nohlobo lwe-DC, kunye neziqendu ezibanzi.

Amatywina asemgangathweni ophakathi: Ukuxhotyiswa ngeBuna-N, kwi-EPDM, okanye i-PtFe, okanye iBanga le-Silicone, ezi ziCouplicone Qinisekisa ukulahleka kwesiqinisekiso, ukukhusela ukungcola kunye nokungcola.

Imisonto yemilinganiselo ye-· mgama: ifumaneka nge-BSP, i-BSPP, i-npt, g (i-ISO 228.1), i-DIN2999), iqinisekisa ukuhambelana neenkqubo ezahlukeneyo zokulinganisa.

Iinkcukacha ezichaziweyo:

Izinto zezinto zomzimba: zentsimbi ezingama-316 okanye ezingama-304

I-Pisses kunye nezikhonkwane: Intsimbi engenasibala komoya ongezelelweyo

I-bieta yeerhatswane: Ukukhetha kweBuna-N, e-EpDM, ptfe, okanye iBanga lokutya

Iindidi ze-· TOTAIDE iintlobo: I-BSP, i-BSPP, i-npt, g (i-ISO 228.1), R (DIN2999)

I-1 / isusela kwi-1/2 "ukuya kwi-8", ukhathalela kwiimfuno ezahlukeneyo zokuhamba

Ingcinezelo yoxinzelelo emsebenzini: 50-250 psi, kuxhomekeke kubungakanani kunye nobushushu

Indlela yeFenezela: Ukuphosa ngokuchanekileyo kuqinisekisa ubungakanani obuchanekileyo kunye nomgangatho ophezulu

Izicelo zeshishini:

I-callock yentsimbi engenasitali ifumana ukusetyenziswa kakhulu kwimizi-mveliso eyahlukeneyo, kubandakanya:

I-petpetroleum kunye nemigodi: Ukhuseleko kunye nokuThuthwa kweFulls, ioyile, kunye nezinye iimveliso zepetroleum.

· · · · · · Kuka kamasko nolwakhiwo lwamanzi, ukunkcenkceshela, kunye neenkqubo zokulawulwa kwamanzi amdaka.

Iikhemithi ezikhuselekileyo kunye nokugcinwa kweekhemikhali ezinobungozi kunye nezinobungozi.

I-Imfundo yeCandelo: iinkqubo zokunkcenkceshela, ukuqinisekisa ukuhanjiswa kwamanzi okugqithiswa kwamanzi.

Ulwelo oluhlaziyiweyo: Ukugcina ingqibelelo ye-hyid kwiinkqubo ze-hydraulic kunye noomatshini.

Ngolwakhiwo lwayo lomeleleyo, ukulula kokusetyenziswa, kunye noluhlu olubanzi lwezicelo, i-callock yentsimbi engenasitali yinto ekufuneka ihlawulwe kuyo nayiphi na ishishini elifuna ukuhambisa izinto ezifunwayo nezinempumelelo.

I-parameter yemveliso

Ubungakanani	1/2 '	3/4 '	1 ''	1-1 / 4 ''	1-1 / 2 ''	2 ''	I-2-1 / 2 ''	3 ''	4 ''	5 ''	6 '
A	26	31	38	47	54	65	79	94	121	154	181
B	37	35	43	52	51	58	73	67	66	80	85
C	15	23	26	31	38	48	60	76	103	128	155
Ubunzima / kg	0.06	0.076	0.117	0.2	0.275	0.343	0.723	0.64	1.01	1.9	1.8
Ukuxhobisa "b" okanye "d" okanye "dc"
