I-Piece Flange Ball valves enye
  • I-Piece Flange Ball valves enyeI-Piece Flange Ball valves enye

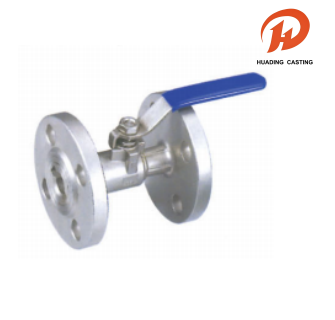

I-Piece Flange Ball valves enye

I-One Piece Flange Ball Valves zethu zenzelwe ukuhambisa ukusebenza okuphezulu kunye nokuthembeka kuluhlu olubanzi lwezicelo zemizi-mveliso. Eyilwe ngokuguquguquka kwengqondo, ezi zivalo zixhasa uxinzelelo olusebenzayo lwe-1.6, 2.5, 4.0, kunye ne-6.4 MPa kwaye zifumaneka ngobukhulu ukusuka kwi-1/2 "ukuya kwi-10". Zikulungele ukusetyenziswa kunye neendaba ezahlukeneyo, kubandakanywa amanzi, igesi, ioli, kunye ne-acids e-corrosive efana ne-nitric kunye ne-acetic acid.I-Piece ye-Flange Ball Valves inikezela ngokuguquguqukayo kwe-thermal, esebenza ngokufanelekileyo kumaqondo okushisa angaphantsi kwe-180 ° C kunye ne-PTFE seals okanye ukuya kwi-300 ° C kunye ne-PPL seals.

Thumela uMbuzo

Ingcaciso yeMveliso

Igama:Iivalvu zeBhola yePiece enye

Umbandela: Itheyibhile elandelayo

MOQ: 100 iipcs

Ipakethe: Ukupakishwa kwangaphakathi kwebhegi yeqamza ejiyileyo kunye nokupakishwa kwangaphandle kwebhokisi, Okanye ukuthuthwa kwepalethi efanelekileyo elwandle

Ukuthunyelwa kwempahla: DHL, UPS, FedEx, LCL ngolwandle njl.

Ukunyamezela: Ukuchaneka komatshini weCNC, ukunyamezela ± 0.01mm

Ukuhlolwa: Ukuhlolwa okupheleleyo kweCMM yaseJamani, isiphene se-zero

I-OEM & ODM: I-OEM & ODM yamkelwe, ukwenza isampulu ngokukhawuleza

Ixesha: Ukulawulwa komgangatho ongqongqo, ukuhanjiswa ngexesha

Inkonzo:Ukhetho olubanzi lwemathiriyeli yezahlulo zesiko



I-Piece Flange Ball valves enye

Ukhuseleko kunye nokuthotyelwa kweyona nto iphambili kuyilo lweziVava zeBhola yeFlange yesiGatya esinye. Babambelela kwimigangatho engqongqo yamazwe ngamazwe, equkethe i-ANSI B16.5 flanges kunye ne-ANSI B16.10 ubuso ngobuso. Ngaphezu koko, i-fire-safe (API 607) kunye nezixhobo ezichasene ne-static ziyafumaneka xa ziceliwe ukuqinisekisa ukhuseleko lokusebenza kwiindawo ezinobungozi. Yonke iyunithi ivavanywa ngokuqatha ngokwe-ANSI B16.34 kunye nemigangatho ye-API 598. Nokuba yeyomsebenzi oqhelekileyo okanye wokucutshungulwa kweekhemikhali ezikhethekileyo, i-One Piece Flange Ball Valves ibonelela ngesisombululo esomeleleyo, esithobelayo, kunye nomgangatho ophezulu kwiimfuno zakho zolawulo lolwelo.

I-Flange Ball Valves Iimpawu zobuGcisa kunye noMzobo oqhelekileyo


NPS 1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa
d L D K D1 C f H N-Φ W
1/2 12 90 95 65 46 14 2 60 4-14 110
3/4 15 105 105 75 56 14 2 65 4-14 120
1 20 110 115 85 65 15 2 75 4-14 150
1 1/4 25 125 135 100 76 16 3 83 4-18 160
1 1/2 32 136 145 110 85 18 3 90 4-18 160
2 38 155 160 125 100 18 3 100 4-18 180
2 1/2 50 170 180 145 118 20 3 110 4-18 200
3 65 200 195 160 132 20 3 130 8-18 250
4 80 230 215 180 150 22 3 150 8-18 270
5 76 254 255 216 186 24 3 185 8-22 300
6 102 267 279 241.5 216 26 3 209 8-22 320
8 152 292 345 298.5 270 29 3 250 8-22 350
10 203 330 406 362 324 31 3 345 12-26 400


Uluhlu lwezinto ezibonakalayo zeValve yebhola

ICANDELO IGAMA IZINTO
UMZIMBA CF8M/WCB
ISIHLALO PTFE
ICAP CF8M/WCB
IGASKET yotywino PTFE/GRAPHITE
IBHOLA SS316
STEM SS316
ISIQINISEKISO PTFE
UKUPAKISHA PTFE/GRAPHITE
IGLAND LOKUPAKA SS316
IGLAND LOKUPAKA CF8M/WCB
YIMA i-PIN SS304
IBHUTI YEDLALA SS304
ISANGQA 65MN
PHATHA I-KT33-8
SET BOLT SS304


Ulwazi Ngathi

Inkampani

umenzi (ngaphezu kweminyaka engama-20 yomzi-mveliso onamava)

umthengisi ngaphandle (ukuthunyelwa ngaphandle ukusuka kwi-2008 ngonyaka)
Iimakethi eziphambili zokuthumela ngaphandle

• EMpuma Yurophu

• INtshona Yurophu

• Amantla Emelika

• kuMbindi Mpuma Afrika

• UMbindi/uMzantsi Merika

• EAsia

• Ostreliya

• Umthengi onentsebenziswano yexesha elide: iMelika, iKorea, iJamani, iSpain, iAustralia njl.
Inzuzo yenkampani

• Isiqinisekiso/iwaranti

• Uphawu lwemveliso

• Ukusebenza kwemveliso

• Ukuhanjiswa ngokukhawuleza

• Ukuvunywa komgangatho

• Inkonzo

• Iodolo encinci yamkelwe


ISIQINISEKISO:GB/T 19001-2016/ISO 9001:2015


Ubuchule bethu boMatshini beCNC




Ukupakisha kunye nokuhanjiswa




FAQ

Yintoni i-MOQ yakho?

Ngokutsho kwakho, idla ngokuba ziiyunithi ezili-1000. Samkela isixa esincinci.

Liliphi ixesha lokuhanjiswa kwesampulu?

Yinto ngokwesampulu, ngokwesiqhelo iba ziintsuku ezisi-7.

Ubungakanani bobunzima obuphosileyo?

Ubunzima esinokubuphosa ukusuka kwi-0.007kg ukuya kwi-130kg.

Lithini ixesha lakho lokuhlawula?

I-30% yokuhlawula kwangaphambili kunye ne-70% eseleyo ngokuchasene ne-bill of lading yokuthunyelwa.

Uyawubonelela ngesampulu? Mahala okanye intlawulo?

Ewe, sinikezela ngesampuli, kodwa iindleko zokuhanjiswa kunye neendleko zokubumba kufuneka zithwalwe nguwe.

Ngaba ungumenzi okanye inkampani yokurhweba?

Singumvelisi oqeqeshiweyo onamava angaphezu kwama-26 eminyaka yokuthumela ngaphandle kokuyila kunye nokuvelisa iintsimbi zentsimbi.
