Iflange

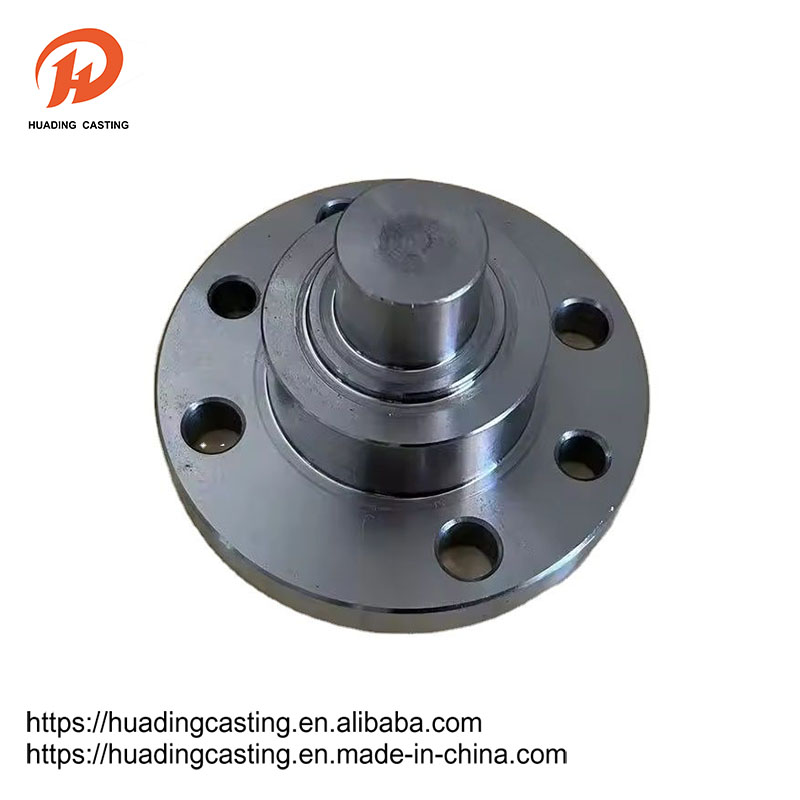

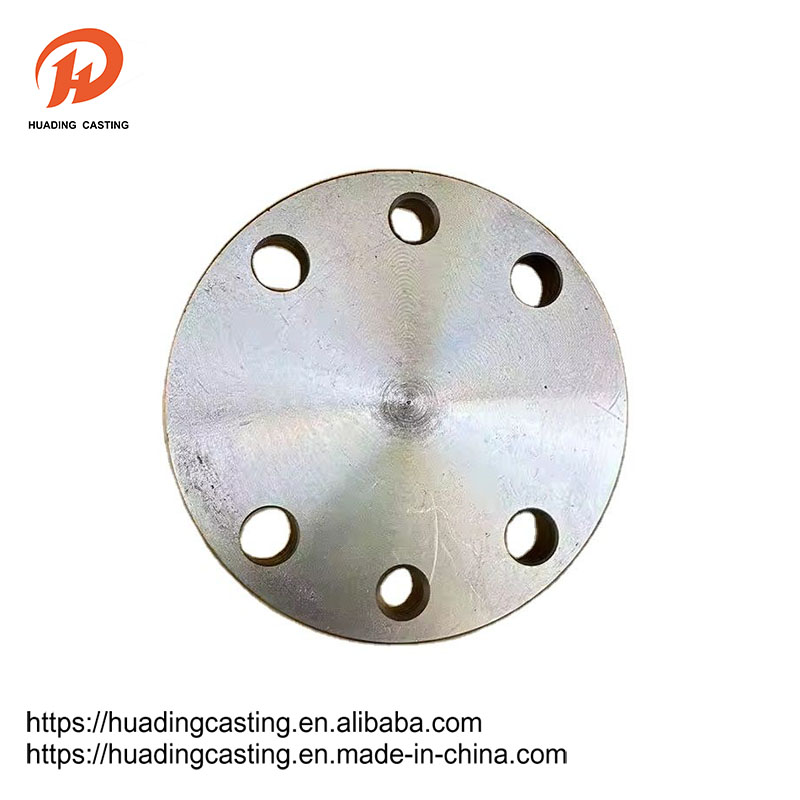

I-Flange lilungu elixhunyiwe phakathi kweshafti kunye neshafti, esetyenziselwa ukunxibelelana phakathi kwemibhobho; Ikwaluncedo nakwiflethi ngokungenisa ngaphakathi nangaphandle kwezixhobo zonxibelelwano phakathi kwezixhobo ezibini, ezinjenge-flanger yokunciphisa. Uqhagamshelo lweflethi okanye i-flange idibanise kunxibelelwano olunokutsha oluxhunyiwe ziiflethi, i-galls kunye neebhotile njengeqela lezinto ezihlanganisiweyo. Kukho imingxunya kwiflethi kwaye ii-bolts zenza ukuba i-flaxes ezimbini zixhunyiwe ngokuqinileyo. I-flange itywinwe nge-gasket.

Thumela uMbuzo

Ingcaciso yeMveliso

Ifleves yahlulwe yahlulwa-uqhagamshelo olwenziwe ngoqhagamshelo (uqhagamshelo lwentambo) flaxes, i-weldid flanges kunye neflemp. Iiflene zisetyenziswa ngababini, iiflengu ze-wire zingasetyenziselwa imibhobho yoxinzelelo ephantsi, kunye ne-wellded flanges ngaphezulu kweekhilogramu ezine zoxinzelelo. Beka i-gasket phakathi kwezinto ezimbini kwaye uzibongoze ngee-bolts. Ubungqingqwa boxinzelelo lweflethi olwahlukileyo ahlukile, basebenzisa iibhotile ezahlukeneyo. Iimpompo kunye neeValves, xa zixhunyiwe ngemibhobho, iinxalenye zalapha kwezi zixhobo zenziwa zangamilo ehambelana neflengi, ekwabizwa ngokuba yiFlenges uqhagamshelo. Onke amacandelo oqhagamshelo aqhagamshelwe zii-bolts ezijikeleze iindiza ezimbini kwaye zivaliwe kwangaxeshanye zibizwa ngokuba yi "Flengees", ezinje ngoqhagamshelo lwezinto ezihlaselweyo ". Kodwa olu nxibelelwano luyinxalenye yezixhobo, ezinje ngonxibelelwano lweflonge kunye nempompo, akulunganga ukubiza impompo "yeflethi". Amancinci amancinci anjengeValveve, njl., Unokubizwa ngokuba "ziingqongwe".

I-parameter yemveliso

Dn	Usuku lombhobho	Ubungakanani bonxibelelwano				C	N	H	Pp
Dn	A	D	K	L	n	C	N	H	Pp
10	17.2	75	50	11	4	12	25	2	3/8
15	21.3	80	55	11	4	12	30	20	1/2
20	26.9	90	65	11	4	14	40	24	I-3/4
25	33.7	100	75	11	4	14	50	24	1
32	42.4	120	90	14	4	16	60	26	1 1/4
40	48.3	130	100	14	4	16	70	26	1 1/2
50	60.3	140	110	14	4	16	80	28	2
65	76.1	160	130	14	4	16	100	32	I-2 1/2
80	88.9	190	150	18	4	18	110	34	3
100	114.3	210	170	18	4	18	130	40	4
125	139.7	240	200	18	8	18	160	44	5
150	168.3	265	225	18	8	20	185	44	6
